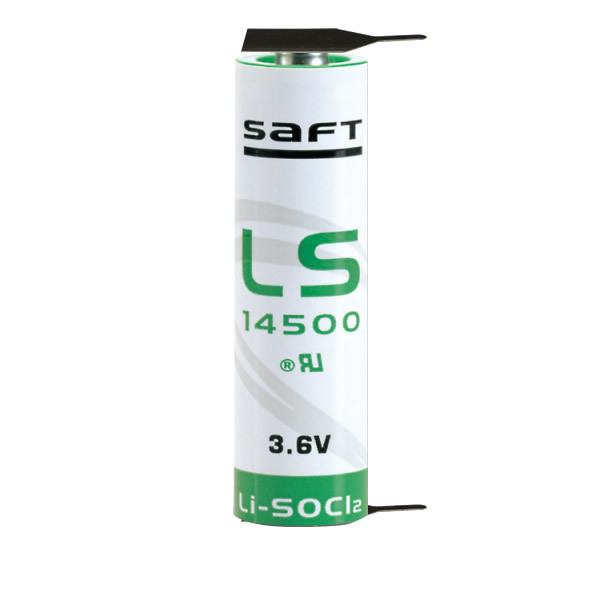

Saft LS14500 2PF Battery - 3.6V AA Lithium - 2 Pins

3.6 Volt 2600mAh, AA Lithium Battery With 2 Pins

Description:
Saft LS14500 primary lithium cell, is based on the Lithium-Thionyl chloride (Li-SOCl2) chemistry. The LS14500 key features are the concentric electrodes (“bobbin”) construction that enables maximum loading of active materials and corresponding energy.

The LS14500 cell is designed specifically for long-term (3 to 15 years) applications, featuring a few UA based currents and periodic pulses, typically in the 5-150 mA range.

Compatible Part Numbers: LAA, ER6, VL-AA, TL5104, TL2100, T06/41, T06/51, LS6, 3B940, LTC17C, LTC-17C, ER6AA, ER6H, LST14500, Taclane Battery

Construction Features:

• Concentric (“bobbin”) electrodes
• Stainless steel containers
• Un-fused individual cells

Main Applications:

• Memory back-up
• Real-time clocks
• Utility metering
• Automated meter reading
• Wireless alarms and Security devices
• Emergency locations transmitters beacon
• Electronic toll collection
• Professional electronics

Benefits:

• High operating voltage, stable during most of the application lifetime
• Some of the highest nominal capacities on the market today
• Excellent reliability over extended operating life
• Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
• Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
• Excellent resistance to humid environments
• Low magnetic signature
• Good resistance to passivation
• Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
• Less than 1% capacity loss during storage at ambient temperature before use
• ½ AA, AA and A cell models non-restricted to transport
• Up to 25 years of mass production experience
• Excellent safety records
• Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard
• Compliance with the European directive RoHS
