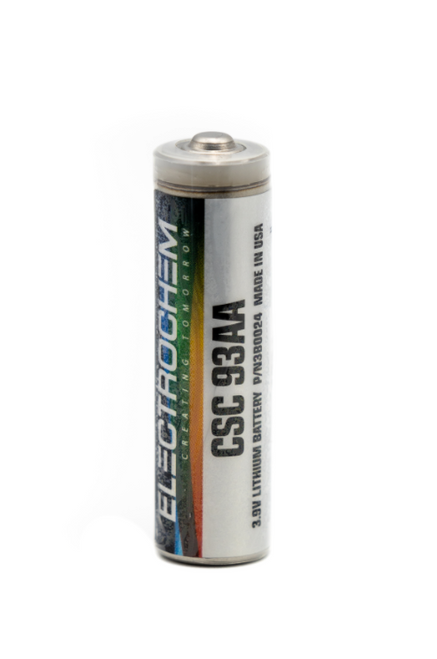

Electrochem 3B24-TC - CSC93AA 3.9V 2Ah AA Lithium Battery

*Special Order - Ships Direct From Factory - Non-Cancellable - Non Returnable

*Small Quantities Shipping Via Air May Require Additional Shipping

Voltage: 3.9 Volts

Capacity: 2000mAh

Chemistry: Lithium

Dimensions: Diameter 0.55" x Height 1.97"

Replacement for:

Electrochem

3B24

AS35806

B00573

3M Healthcare (Centrimed, Racal & Sarnes, AVI)

Actrac 100

Physio-Control (First Med, Medtronic)

Medtronic Actrac 100 Tracker Simulator

Technical Overview
Open Circuit Voltage (25o C) 3.9 V
Rated Discharge Current 50 mA
Rated Capacity 2 Ah
Maximum Continuous Current 150 mA
Cell Diameter 13.7 mm (0.54 in.)
Cell Length 49.2 mm (1.94 in.)
Cell Weight 17 g
Lithium Weight 0.6 g
Self Discharge 3% per year at 25o C
Operating Temperature -20o C to +93o C -4o F to +200o F

Key Features
• Primary chemistry (non-rechargeable)
• High rate capability
• Advanced spiral-wound technology
• Stainless steel container
• Hermetic glass-to-metal sealing
• Wide operating temperature range as low as -20o C and up to +93o C
• Low self discharge rate (3% per year at 25o C)
• Restricted for transportation (Class 9)
• Custom terminations available

Main Applications
• Military communications
• Oceanographic buoys and gliders
• Tracking systems
• Sensor systems
• Pipeline inspection gauges
• Beacons, transponders and receivers
• Seismic surveying birds
