3 pins horizontal through-hole mounting (RH types)

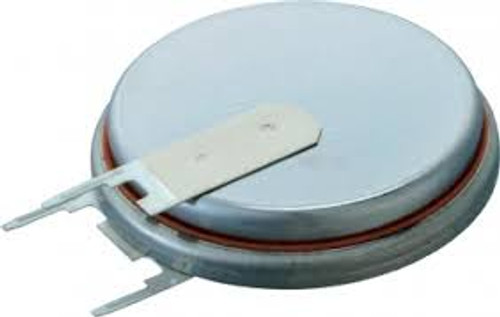

Renata 3 pins horizontal through-hole mounting (RH types) 3V Lithium Battery
| Catalogue of three-pins standard tabbed coin cells for horizontal mounting on PCBs. Features
|
Specifications
|
|
| Renata part name |
Nominal capacity (mAh) |
Weight (g) |
Dimensions (mm) |
||||
| A | B | C | D | E | |||
| CR1632RH-LF | 137 | 2.0 | 16.0 | 16.35 | 15.2 | 5.45 | 9.45 |
| CR2016 MFR RH | 90 | 2.0 | 20.0 | 20.35 | 15.2 | 3.95 | 7.95 |
| CR2025 MFR RH | 165 | 2.6 | 20.0 | 20.35 | 15.2 | 4.85 | 8.85 |
| CR2032 MFR RH | 225 | 3.1 | 20.0 | 20.35 | 15.2 | 5.45 | 9.45 |
| CR2032 MFR RH1 | 225 | 3.1 | 20.0 | 20.35 | 17.8 | 5.45 | 9.45 |
| CR2032 MFR RH2 | 225 | 3.0 | 20.0 | 20.35 | 20.4 | 5.45 | 9.45 |
| CR2325RH-LF | 190 | 3.3 | 23.0 | 23.35 | 17.8 | 4.85 | 8.85 |
| CR2430RH-LF | 285 | 4.4 | 24.5 | 24.85 | 17.8 | 5.45 | 9.45 |
| CR2430RH1-LF | 285 | 4.4 | 24.5 | 24.85 | 20.4 | 5.45 | 9.45 |
| CR2450NRH-LF | 540 | 6.2 | 24.5 | 24.85 | 17.8 | 7.35 | 11.35 |
| CR2450NRH1-LF | 540 | 6.2 | 24.5 | 24.85 | 20.4 | 7.35 | 11.35 |
| CR2477NRH-LF | 950 | 8.5 | 24.5 | 24.85 | 17.8 | 10.05 | 14.05 |
