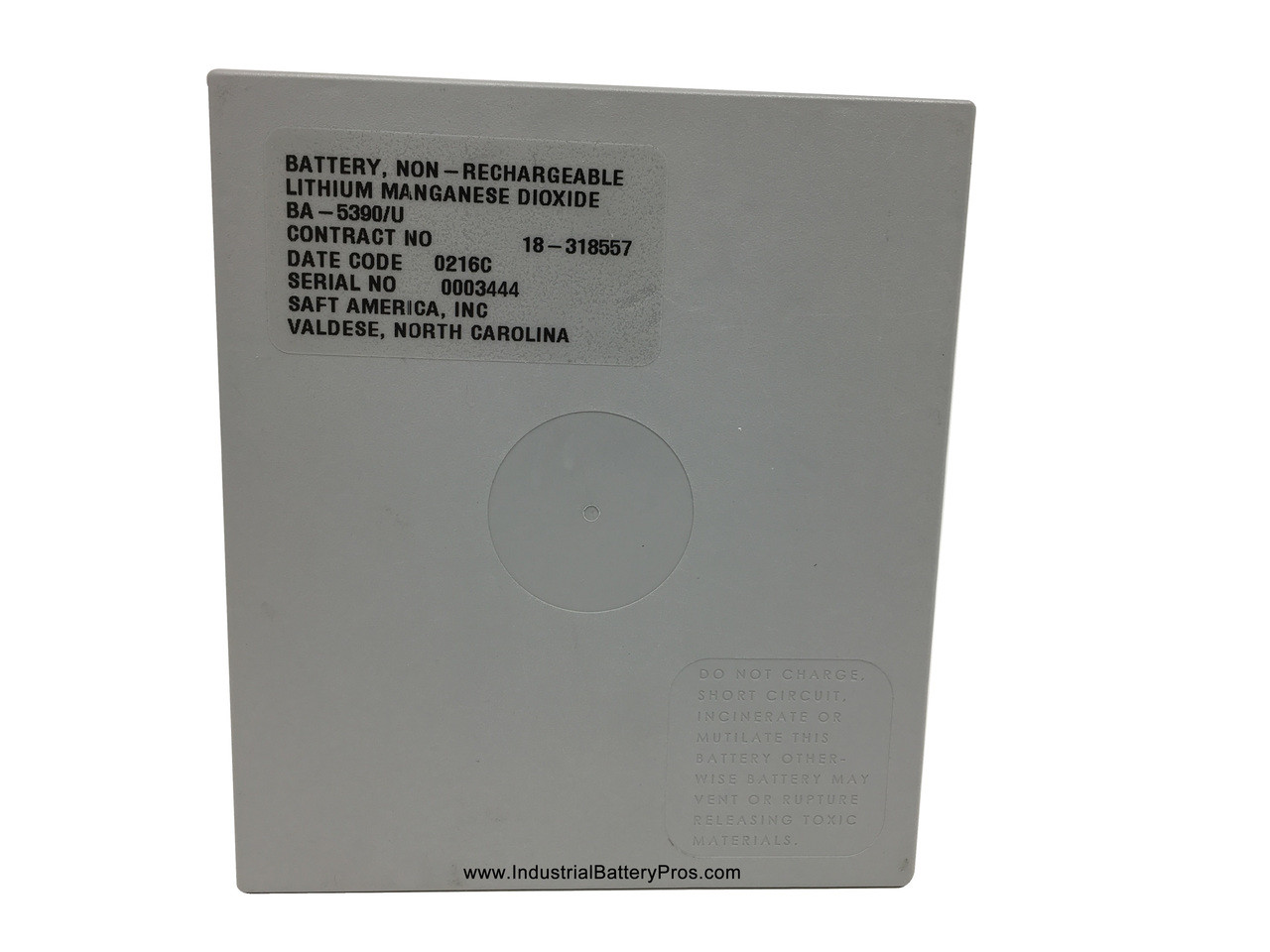

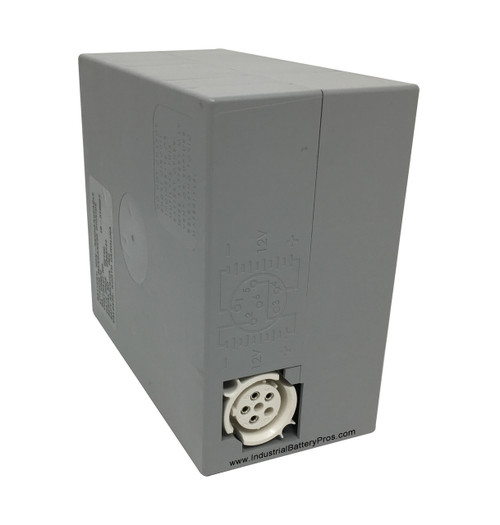

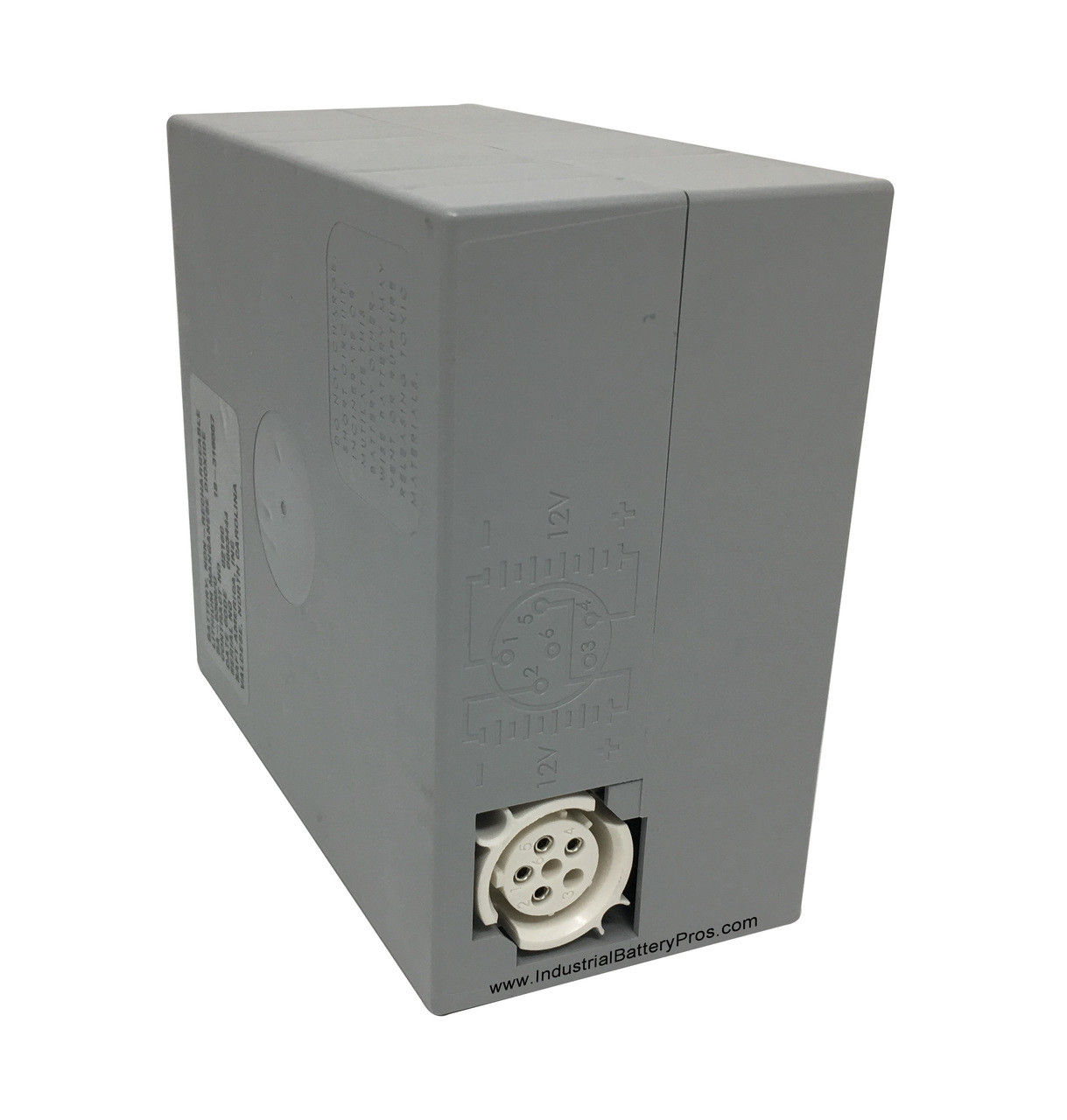

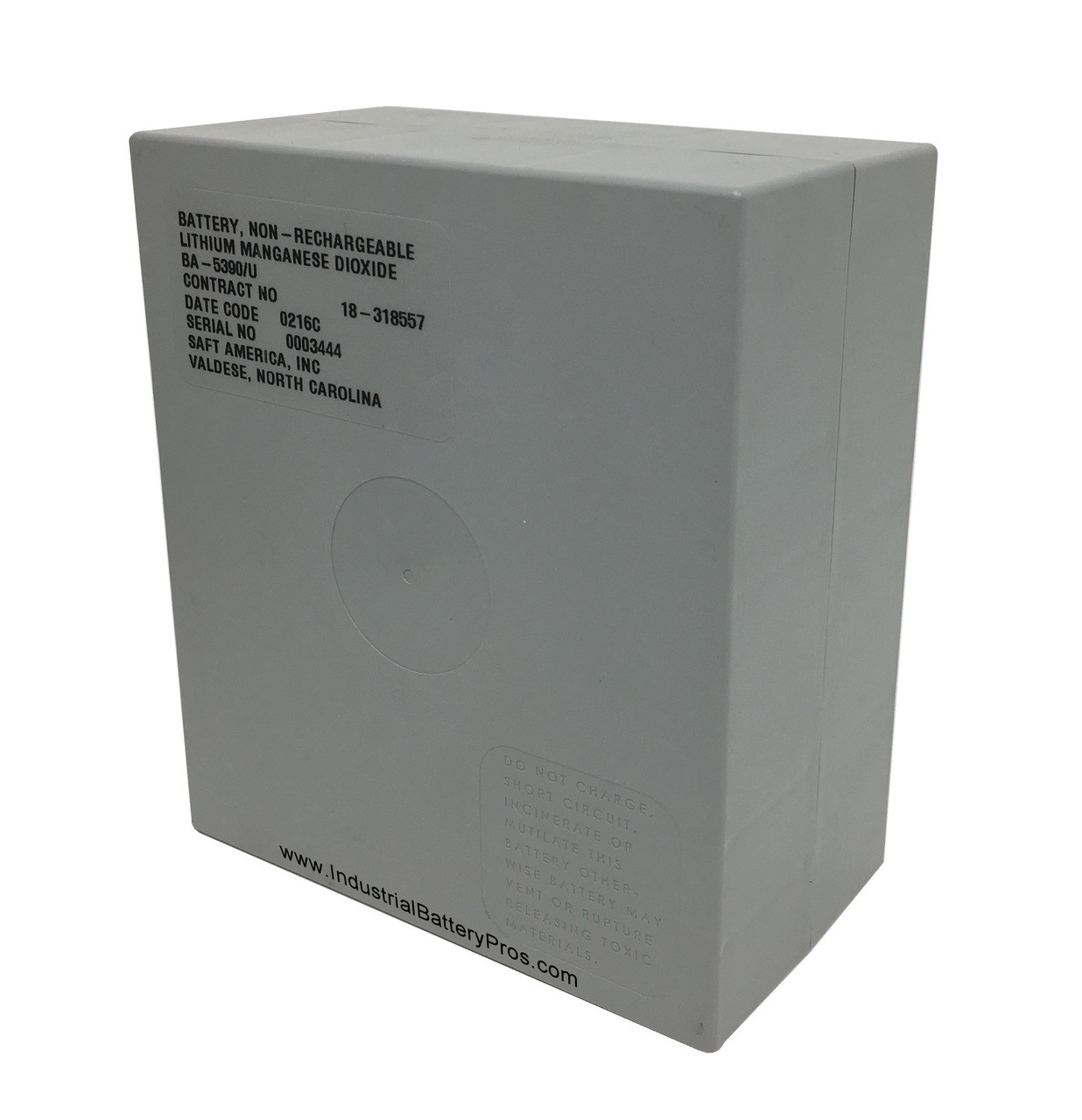

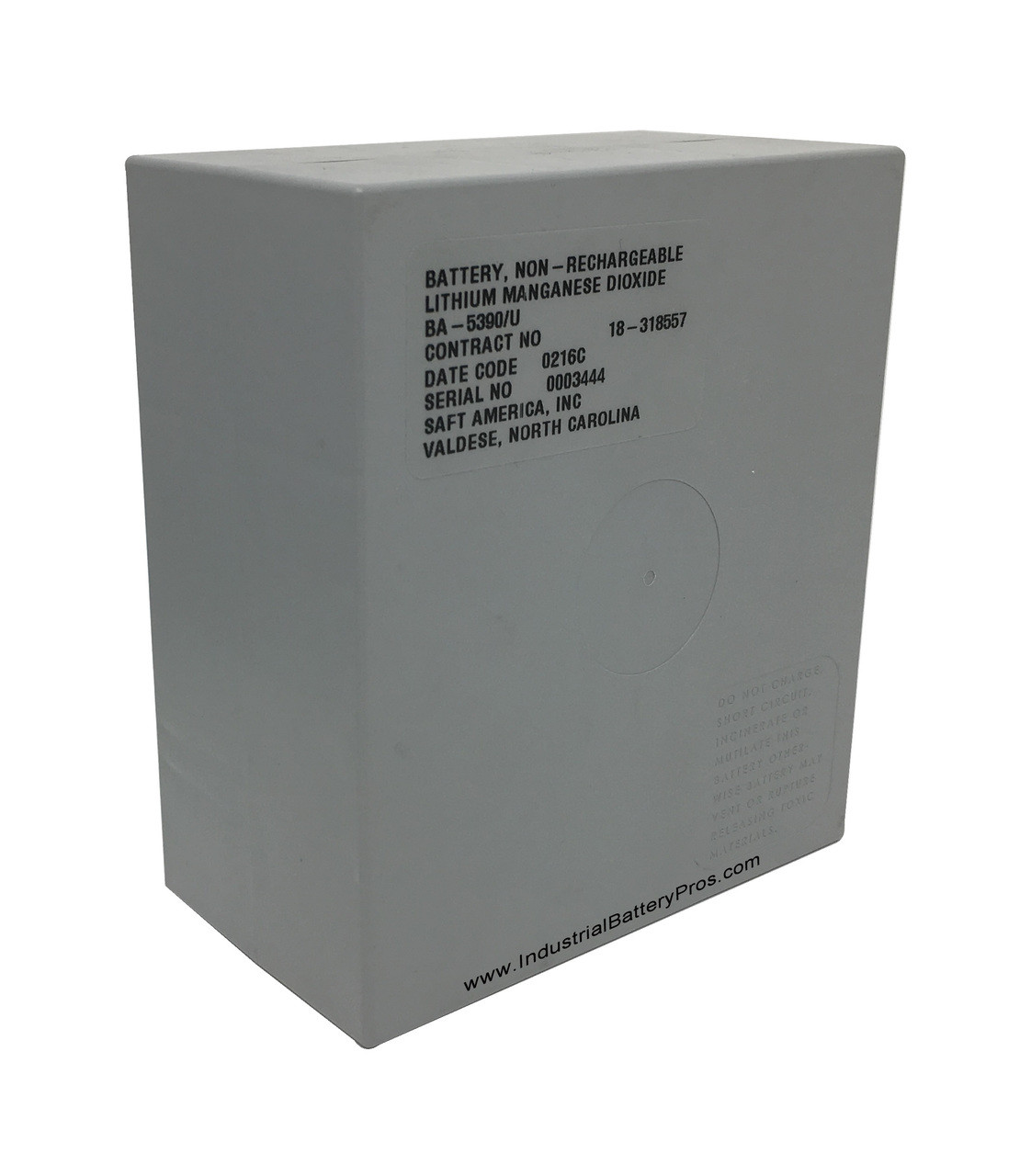

Saft BA-5390/U Battery - NSN 6135-01-501-0833

$199.00
Availability:
In Stock
Quantity:
Bulk Discounts for Saft BA-5390/U Battery - NSN 6135-01-501-0833

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 4 - 7 and pay only $190.00 each
  • Buy 8 - 15 and pay only $185.00 each
  • Buy 16 - 31 and pay only $180.00 each
  • Buy 32 - 63 and pay only $175.00 each
  • Buy 64 or above and pay only $169.00 each

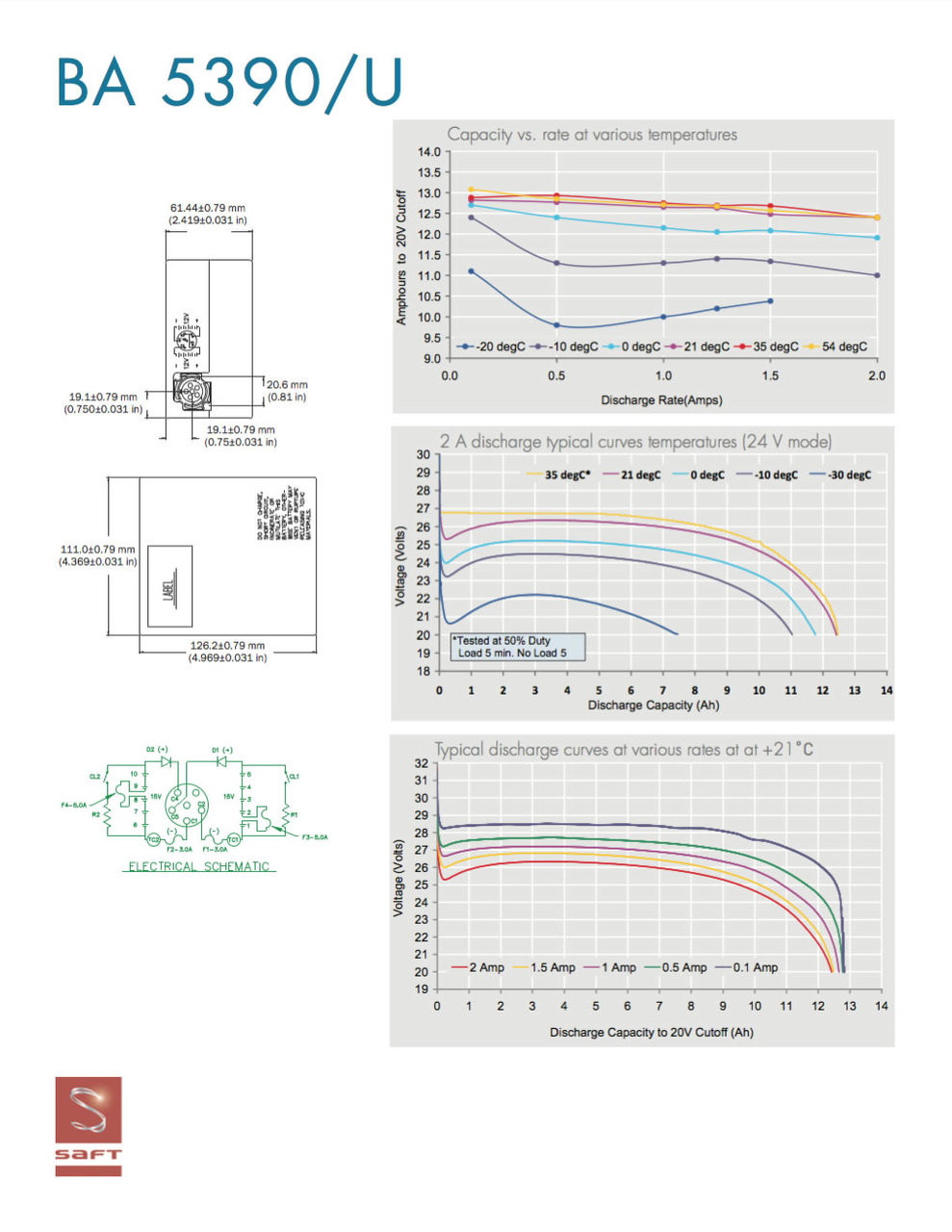

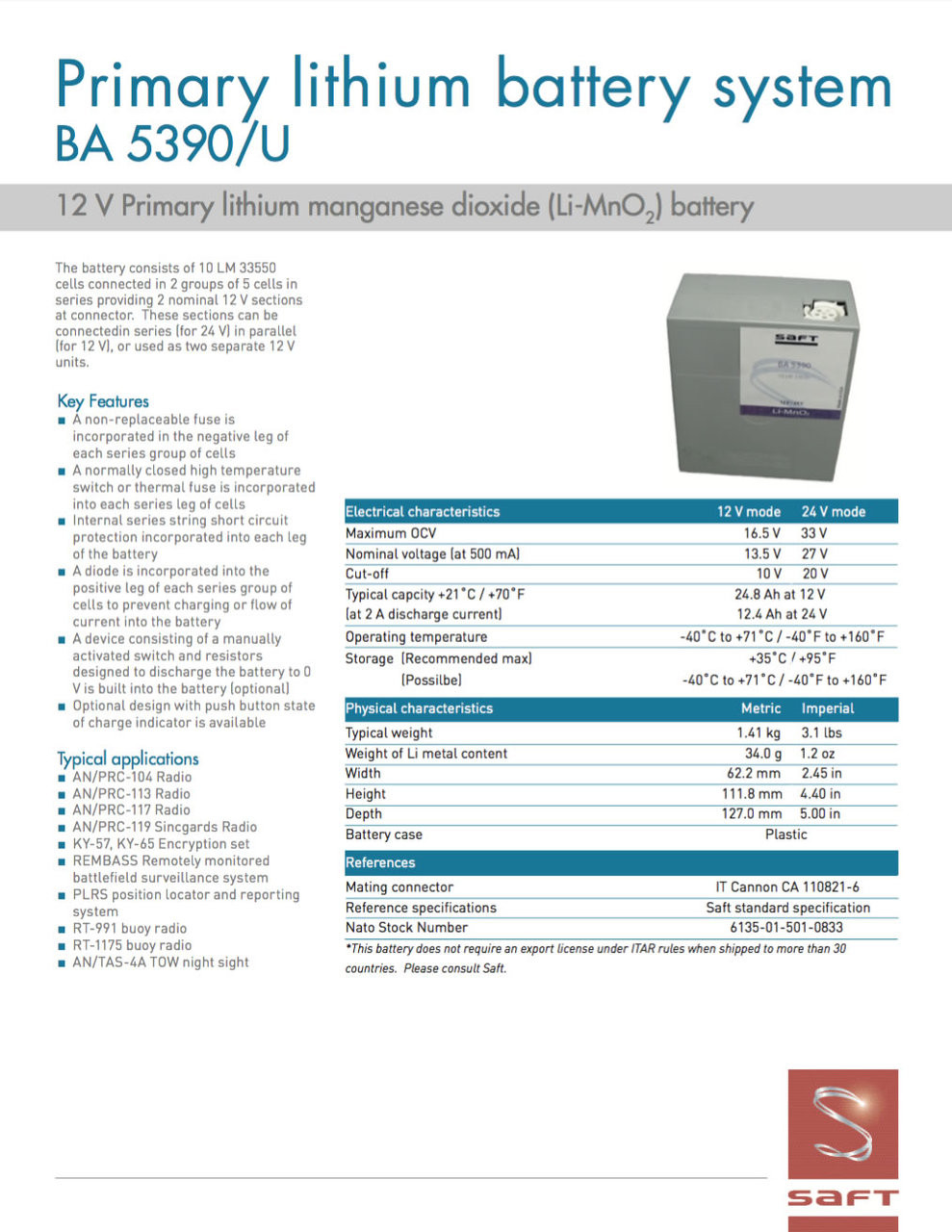

Saft BA-5390/U Battery - NSN 6135-01-501-0833


Electrical Characteristics 12V Mode 24V Mode
Maximum OCV 16.5V 33V
Nominal Voltage (at 500mA 13.5V 27V
Cut-off 10V 20V

Typical capacity +21°C / -70F

(at 2A discharge current)

24.8Ah at 12V  12.4Ah at 24V
 Operating Temperature

-40°C to +71°C

-40°F to +160°F

 -40°C to +71°C

-40°F to +160°F

 Storage (Recommended max) +35°C / +95°F  +35°C / +95°F
 Storage (Possible)

-40°C to +71°C

-40°F to +160°F

 -40°C to +71°C

-40°F to +160°F



Physical Characteristics Metric Imperial
Typical Weight 1.41Kg 3.1lbs.
Weight of Li Metal Content 34.0g 1.2oz
Width 62.2mm 2.45in
Height 111.8mm 4.40in
Depth 127.0mm 5.00in
Battery Case Plastic Plastic



References

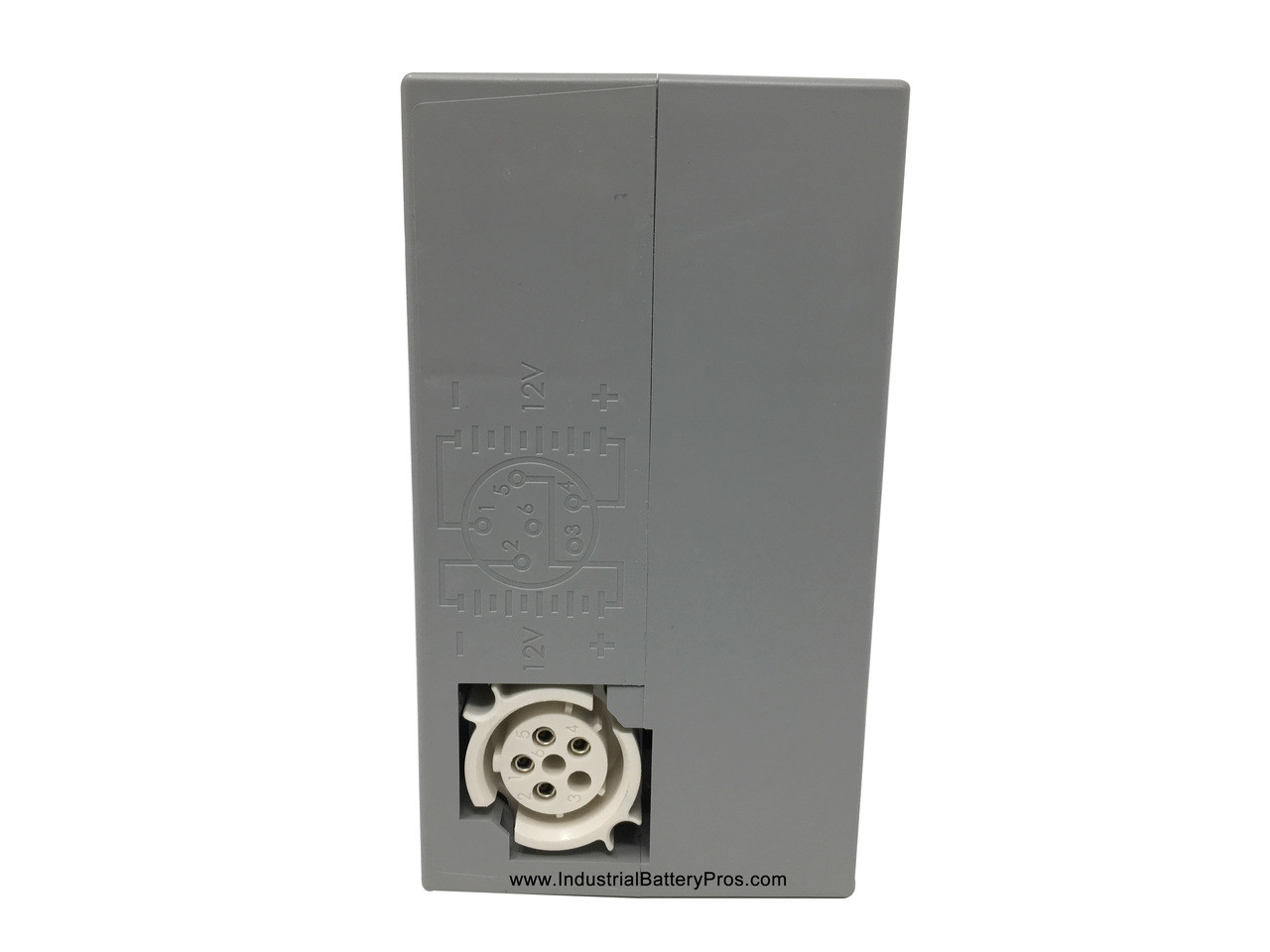

Mating Connector IT Cannon CA 110821-6
Reference Specifications Saft Standard Specification
Nato Stock Number 6135-01-501-0833

The battery consists of 10 LM 33550 cells connected in 2 groups of 5 cells in series providing 2 nominal 12 V sections at connector. These sections can be connectedin series (for 24 V) in parallel (for 12 V), or used as two separate 12 V units.

Key Features

  • A non-replaceable fuse is incorporated in the negative leg of each series group of cells

  • A normally closed high temperature switch or thermal fuse is incorporated into each series leg of cells

  • Internal series string short circuit protection incorporated into each leg of the battery

  • A diode is incorporated into the positive leg of each series group of cells to prevent charging or ow of current into the battery

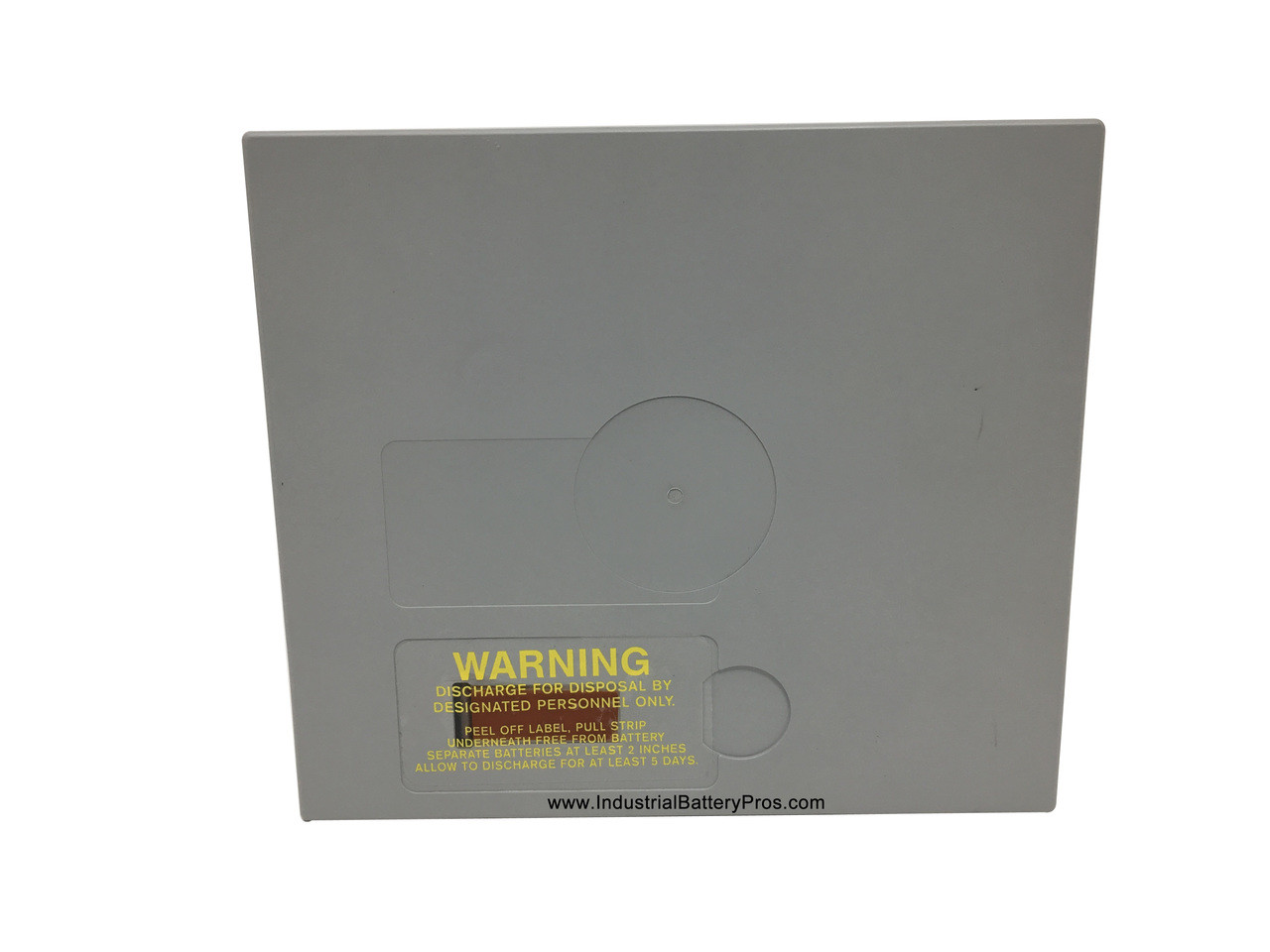

  • A device consisting of a manually activated switch and resistors designed to discharge the battery to 0 V is built into the battery (optional)

  • Optional design with push button state of charge indicator is available

Typical Applications

  • AN/PRC-104 Radio

  • AN/PRC-113 Radio

  • AN/PRC-117 Radio

  • AN/PRC-119 Sincgards Radio

  • KY-57, KY-65 Encryption set

  • REMBASS Remotely monitored battle eld surveillance system

  • PLRS position locator and reporting system

  • RT-991 buoy radio

  • RT-1175 buoy radio

  • AN/TAS-4A TOW night sight
